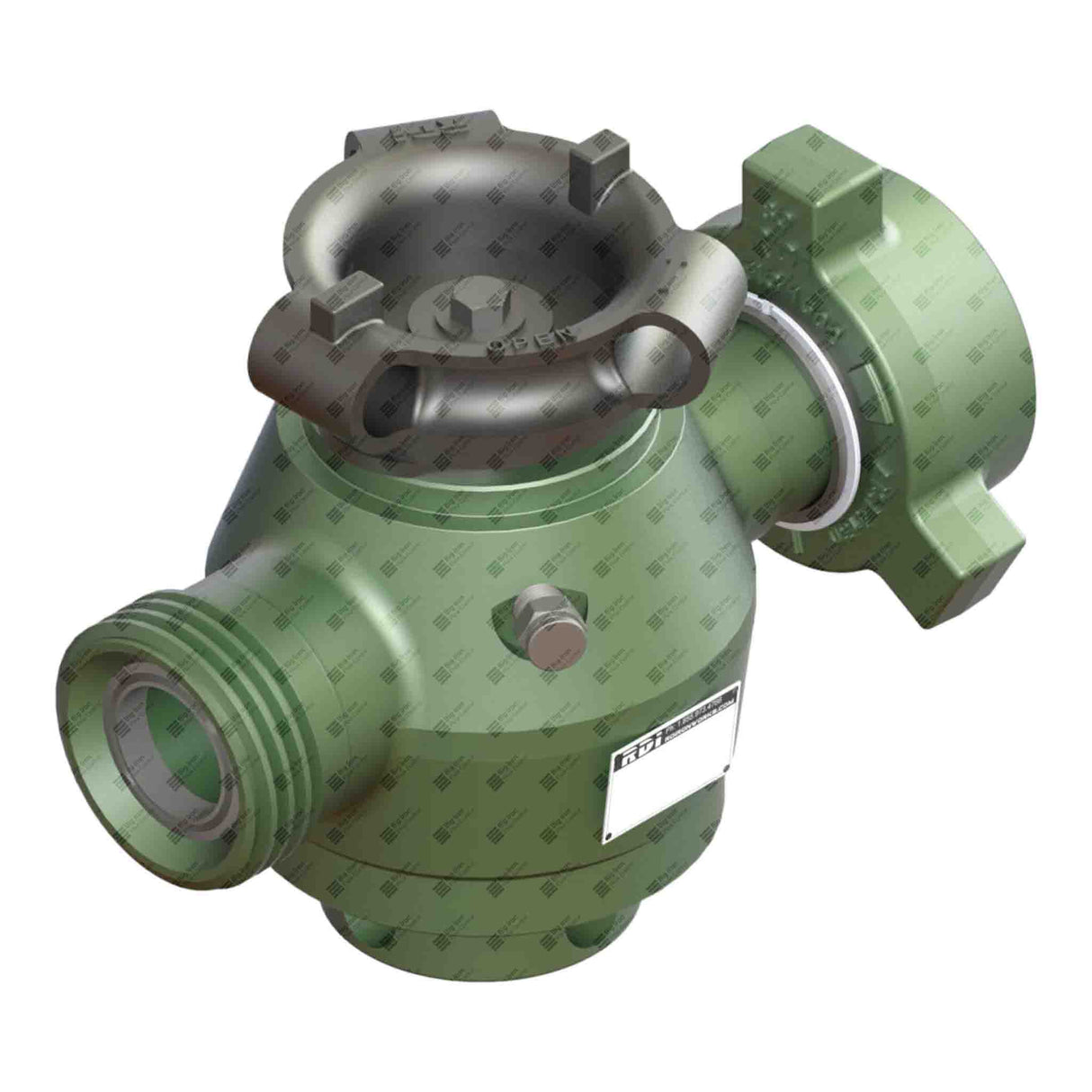

2in x 2in Fig 1502 Low Torque Plug Valve – 10,000 psi Sour Service
Overview
The PV21502LT 2in x 2in Fig 1502 Low Torque Plug Valve is engineered for high-pressure sour service applications where reduced operating torque, dependable sealing performance, and long service life are essential. Designed for 10,000 psi working pressure, this valve combines forged alloy steel construction with an integral low torque operating system to deliver smooth operation and reliable shutoff in demanding oilfield environments.
Connection Configuration: MxF (WxT)
Key Features
- 10,000 psi working pressure
- Sour service (NACE) construction
- 2in Fig 1502 hammer union connections
- Connection Configuration: MxF (WxT)
- Integral low torque operating design
- Forged alloy steel pressure-containing components
- Field serviceable construction
- Compatible with standard Fig 1502 treating iron systems
Technical Specifications
| Product Type | Low Torque Plug Valve |
| Part Number | PV21502LT |
| Size | 2in × 2in |
| Figure | Fig 1502 |
| End Connections | Male × Female (MxF) |
| Working Pressure | 10,000 psi |
| Service | Sour Service |
| Valve Design | Low Torque DET Integral |
| Bore | in |
| Overall Length | 13.88 in |
| Overall Height | 11.46 in |
| Approximate Weight | 95 lbs |
Construction & Materials
Manufactured from forged alloy steel utilizing NACE pressure-containing components with HSN/HNBR sealing elements and an integral low torque operating design. Built for reliable sealing performance, smooth operation, and long service life in demanding high-pressure sour service applications.
Applications
- Hydraulic fracturing
- Flowback operations
- Well testing
- Pressure pumping
- Cementing
- Production testing
- Temporary surface production facilities
- High-pressure manifold systems
- Sour service flowlines
Assembly Components
- Forged plug valve body
- Forged plug
- Forged cap body
- HSN/HNBR union seal
- 3/4in giant button head grease fitting
- Heavy-duty ductile iron handle assembly
- 2in Fig 1502 wingnut kit
Repair Kits & Replacement Parts
Routine maintenance and complete valve rebuilds are supported with genuine RDI replacement components.
- PVRK2LTMIN – 2in Fig 1502 Low Torque Minor Repair Kit
- PVRK2LTMAJ – 2in Fig 1502 Low Torque Major Repair Kit
- Replacement Wingnut Kits
- Union Seals
- Individual Internal Replacement Components
Using genuine RDI repair kits helps restore original valve performance while maximizing service life and minimizing downtime.
-
Data Sheet-
-
Weight-
