Big Iron Flow Control Products | SKU:
PVRK1SPDR150STD4H1
60% off
Plug Valve Repair Kit, Major, FMC/SPM TE, 1" 1502, STD Service, NOE
¥41,800 JPY
¥105,300
Unit price
/
Unavailable
Shipping calculated at checkout.
Lead Time: 1 Day
Plug Valve Repair Kit, Major, FMC/SPM TE, 1" 1502, STD Service, NOE is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Plug Valve Repair Kit, 1" Fig 1502, FMC DR50 DR150 / SPM SP150, Std Service, Top Entry Major Kit, 15,000psi, 4140/HNBR, NOE
| SPECIFICATIONS | |
| Size: | 1 Inch & 1x2 Inch |
| Pressure: | 15,000 PSI |
| Connections: | Fig. 1502 Hammer Union |
| Service: | Standard |
| Standard | AS PER API 6A |
| Product Specification Level: | PSL3 |
| Material Class: | AA - General Service |
| Temperature: | P+U (-20F to 250F) |
| Replaces Kits: | SPM 4L11769 |
| FMC 3208507 | |
| FMC 3221802 | |
| Compatible Valves: | SPM 1A14483 |
| SPM 2A27975 | |
| SPM 1A14483HB | |
| SPM 1A14483A | |
| SPM 1A14483A | |
| FMC 1" DR50 | |
| FMC 1"x2" DR150 | |
| BILL OF MATERIALS | |||
| NO | QTY | DESCRIPTION | MATERIAL |
| 1 | 1 | Grease Fitting (3/8in MNPT) | AISI 1045(C45) |
| 2 | 1 | Hex Lock Nut | AISI 1045(C45) / Nylon |
| 3 | 1 | Felt Gasket | Wool Fiber |
| 4 | 1 | O-Ring, Plug Cap | HNBR (90 Duro) |
| 5 | 2 | O-Ring, Plug Seal | HNBR (90 Duro) |
| 6 | 2 | O-Ring Backup, Plug Seal | PEEK |
| 7 | 1 | Plug | AISI 4140 (42CrMo) 100K (269-352 HBW) |
| 8 | 2 | Side Segments | HTPA-NYLON |
| 9 | 2 | Seal Segments | AISI 4715 (15CrNiMo) 110K (522-616 HBW) |
| 10 | 2 | Segment Seal Rings | HNBR (80 Duro) |

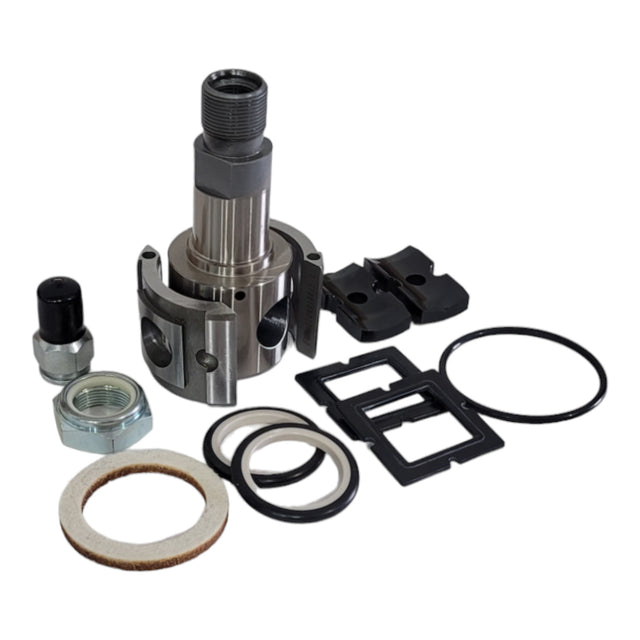

INCLUDES: Plug, Seal Segments, Seals, Side Segments, Grease Fitting, O-Ring, Plug Seals, Felt gasket, Hex Lock Nut
SPM SP150 Part# 4L11769 (KIT/PARTS/PV/2.00)
FMC 3208507 1" DR50- 1 x 2 DR150 REPLACEMENT VALVE KIT
*NON OEM KIT
